GERMA RF 433mhz Transmitter 4 Button Remote Control + Receiver Module Fixed EV1527 Decoding 4CH Output with Learning DIY Kit
3
Direct purchase from the factory
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +8619359849471
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +8619359849471
Application Environment:
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
[Transmitter]
Note:
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4.We don"t offer retail package, but we will pack it well before shipped out.
Product Description:

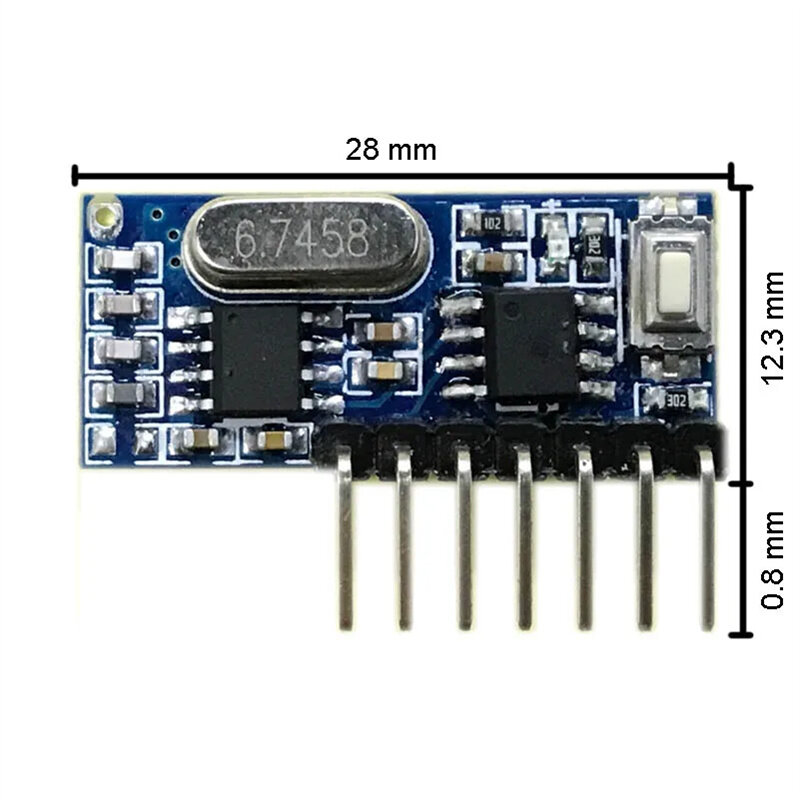

[Receiver module] Product Model: RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : Less than 5mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Working mode: inching, self-locking, interlockking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
How To Programming:
1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.
Button usage (sets mode and starts pairing process):
Press once ( the button on the receiver ): Inching mode (Momentary Mode)
Press twice ( the button on the receiver ): Self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times ( the button on the receiver ): Interlocked mode (selected channel active and be cleared, if another channel becomes active)
Package Include:
u3010Set 1u3011:
1x RX480E-4 Receiver Module
1x KT1527-4 Remote Control
u3010Set 2u3011:
1x RX480E-4 Receiver Module
1x KT02-117S-4 Remote Control
u3010Set 3u3011:
1x RX480E-4 Receiver Module
1x KT16-4 Remote Control
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
[Transmitter]
Note:
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4.We don"t offer retail package, but we will pack it well before shipped out.
Product Description:
[Receiver module] Product Model: RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : Less than 5mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Working mode: inching, self-locking, interlockking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
How To Programming:
1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.
Button usage (sets mode and starts pairing process):
Press once ( the button on the receiver ): Inching mode (Momentary Mode)
Press twice ( the button on the receiver ): Self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times ( the button on the receiver ): Interlocked mode (selected channel active and be cleared, if another channel becomes active)
Package Include:
u3010Set 1u3011:
1x RX480E-4 Receiver Module
1x KT1527-4 Remote Control
u3010Set 2u3011:
1x RX480E-4 Receiver Module
1x KT02-117S-4 Remote Control
u3010Set 3u3011:
1x RX480E-4 Receiver Module
1x KT16-4 Remote Control
